Type
|
SK1300R-RP
|
SK1000R-RP
|
SK650R-RP
|
|
Operation Width
|
1300mm
|
1000mm
|
650mm
|
|
Min. Operation Length
|
480mm
|
350mm
|
350mm
|
|
Material Thickness
|
12mm-110mm
|
12mm-110mm
|
12mm-110mm
|
|

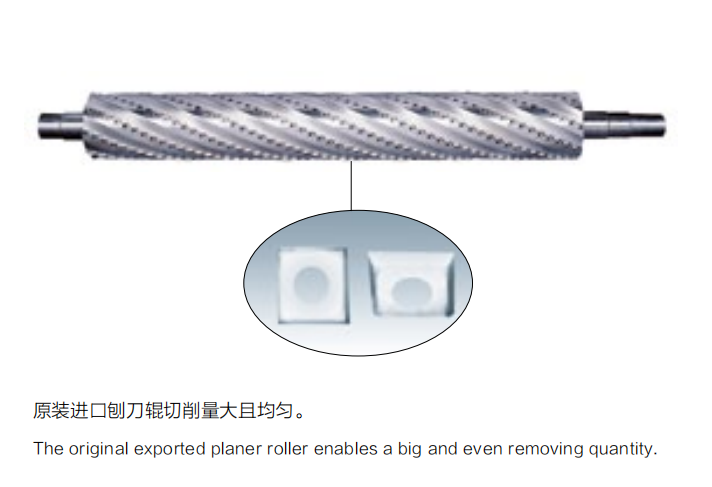

Line Speed of Planer Knife
|
36m/s
|
36m/s
|
36m/s
|
|
Sand-belt Speed
|
20m/s 18m/s
|
20m/s 18m/s
|
20m/s 18m/s
|
|
Conveyor Speed
|
12m/s
|
12m/s
|
18m/s
|
|
General Motor Power
|
63.74kw(22+22+15)
|
51.74kw(18.5+18.5+11)
|
36.44kw(15+11+7.5)
|
|
Sand-belt Size
|
1330mm×2500mm
|
1020mm×2500mm
|
650mm×1900mm
|
|
Working Pressure
|
0.6Mpa
|
0.6Mpa
|
0.6Mpa
|
|
Dust-absorption capacity
|
9600m3 /h
|
8000m3 /h
|
6000m3 /h
|
|
Consumption Volume of Compressed Air
|
18m3 /h
|
15m3 /h
|
13m3 /h
|
|
Machine Size
|
2300×2200×2150mm
|
2100×1540×2000mm
|
2100×1240×2000mm
|
|
Weight
|
5500kg
|
3800kg
|
2600kg
|
